Temperature-capillary tube-regulator – TR
Dear visitors,
This page is currently in process. A correct chronological order, as well as a similar view of all data sheets, is therefore not possible.
Thank you for your understanding.

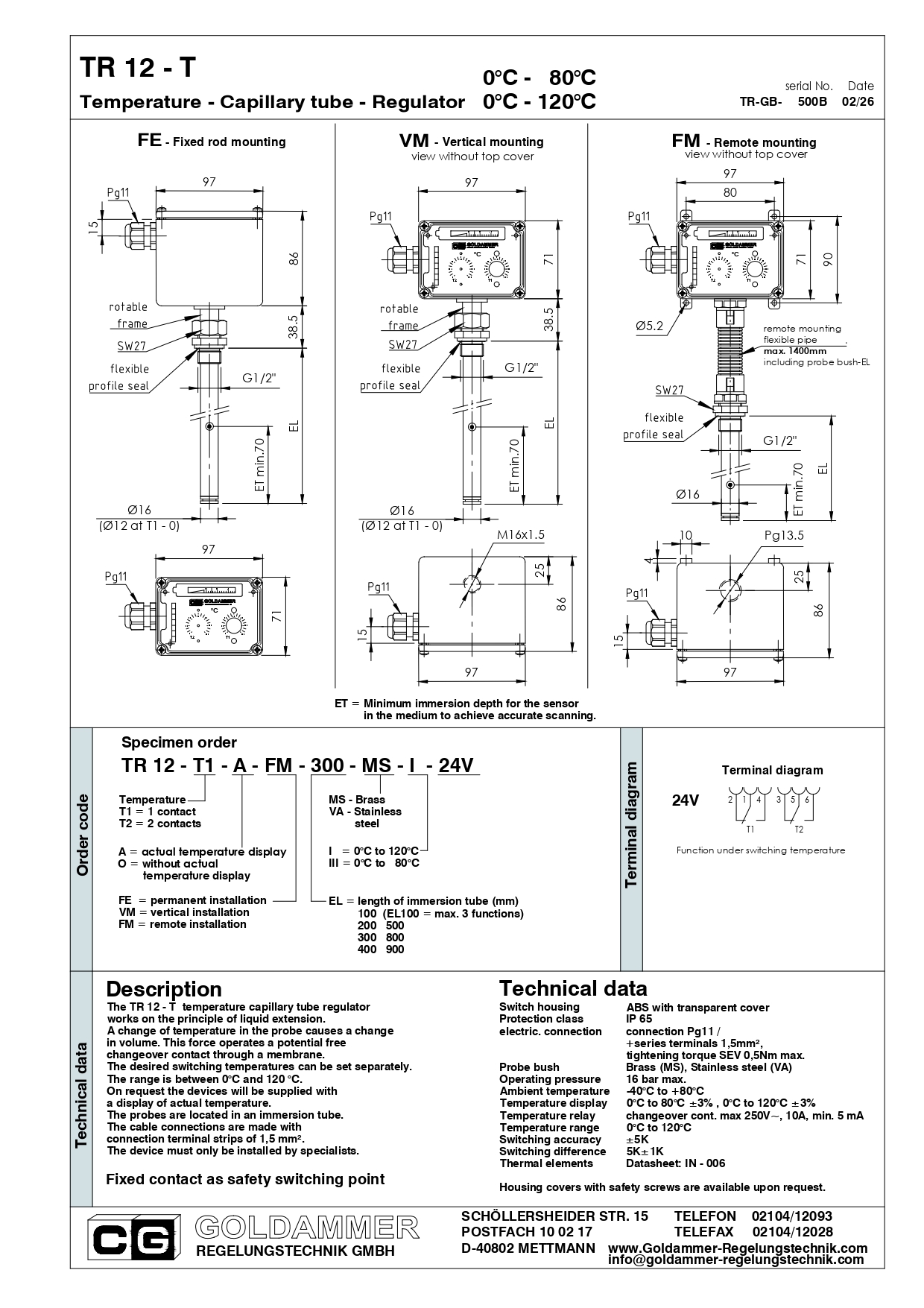

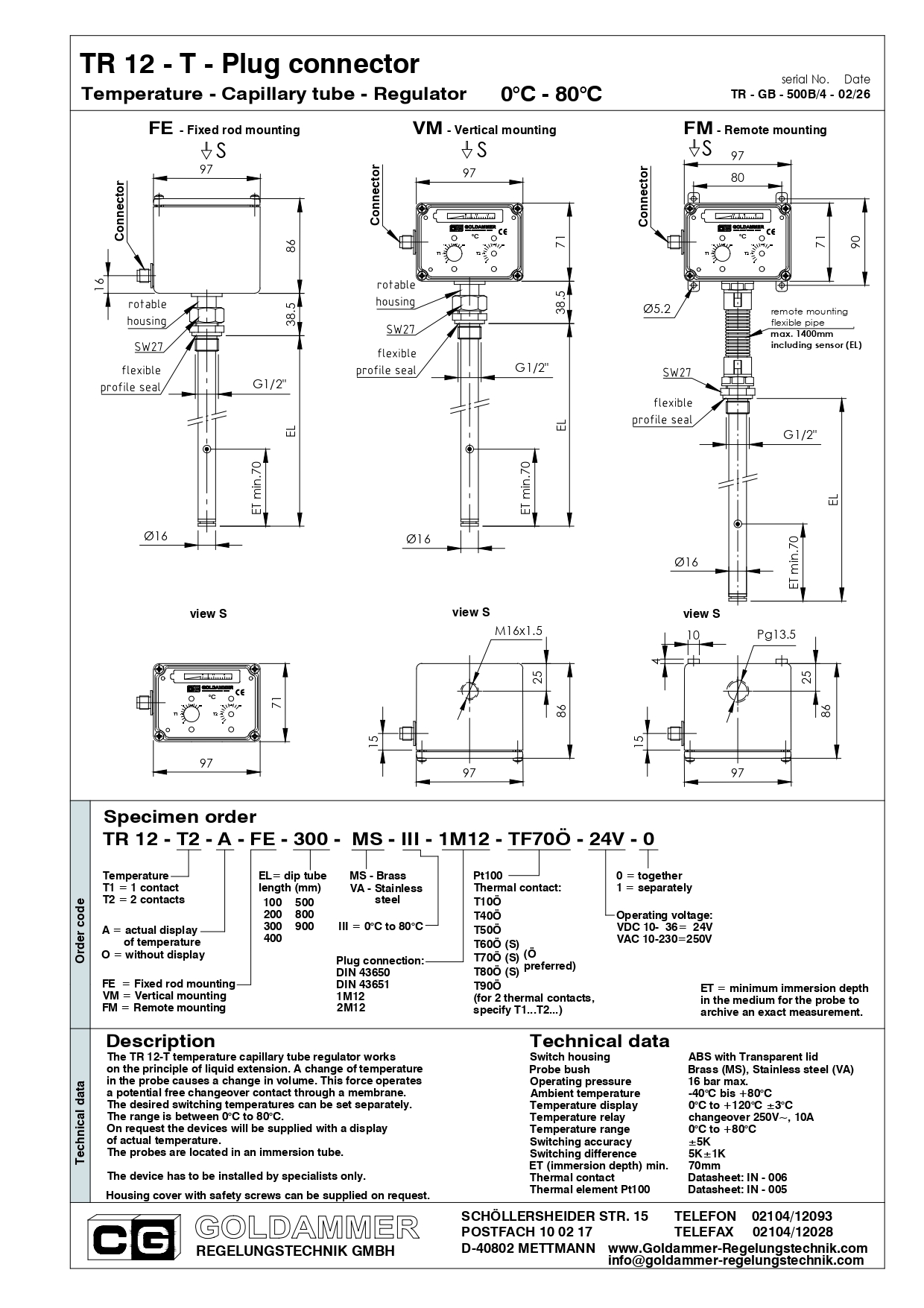

TR-GB-500B/4
TR12 – T – Plug connector
Temperature – Capillary tube – Regulator

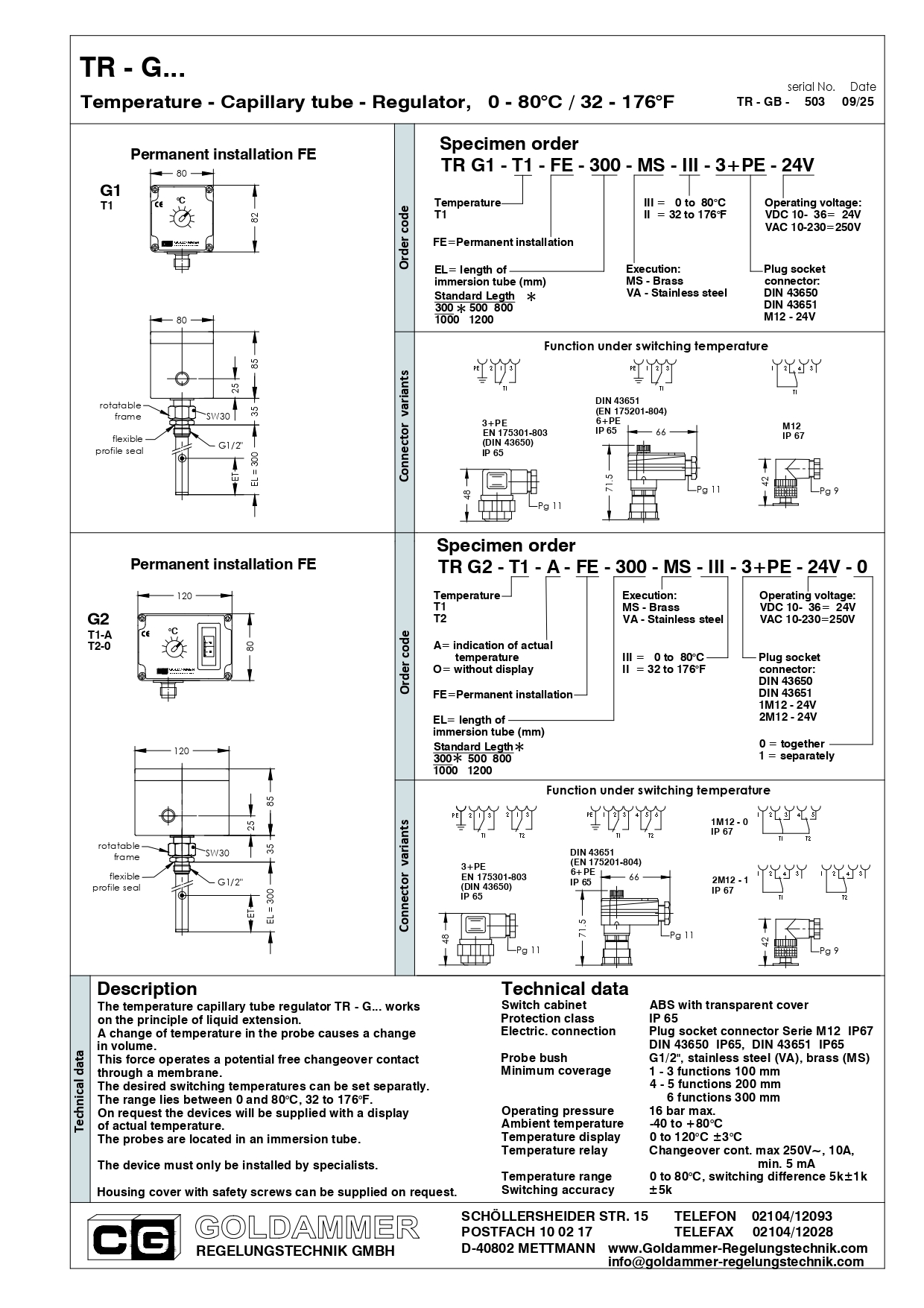

TR-GB-503
TR – G…
Temperature – Capillary tube – Regulotor, 0-80°C / 32-176°F

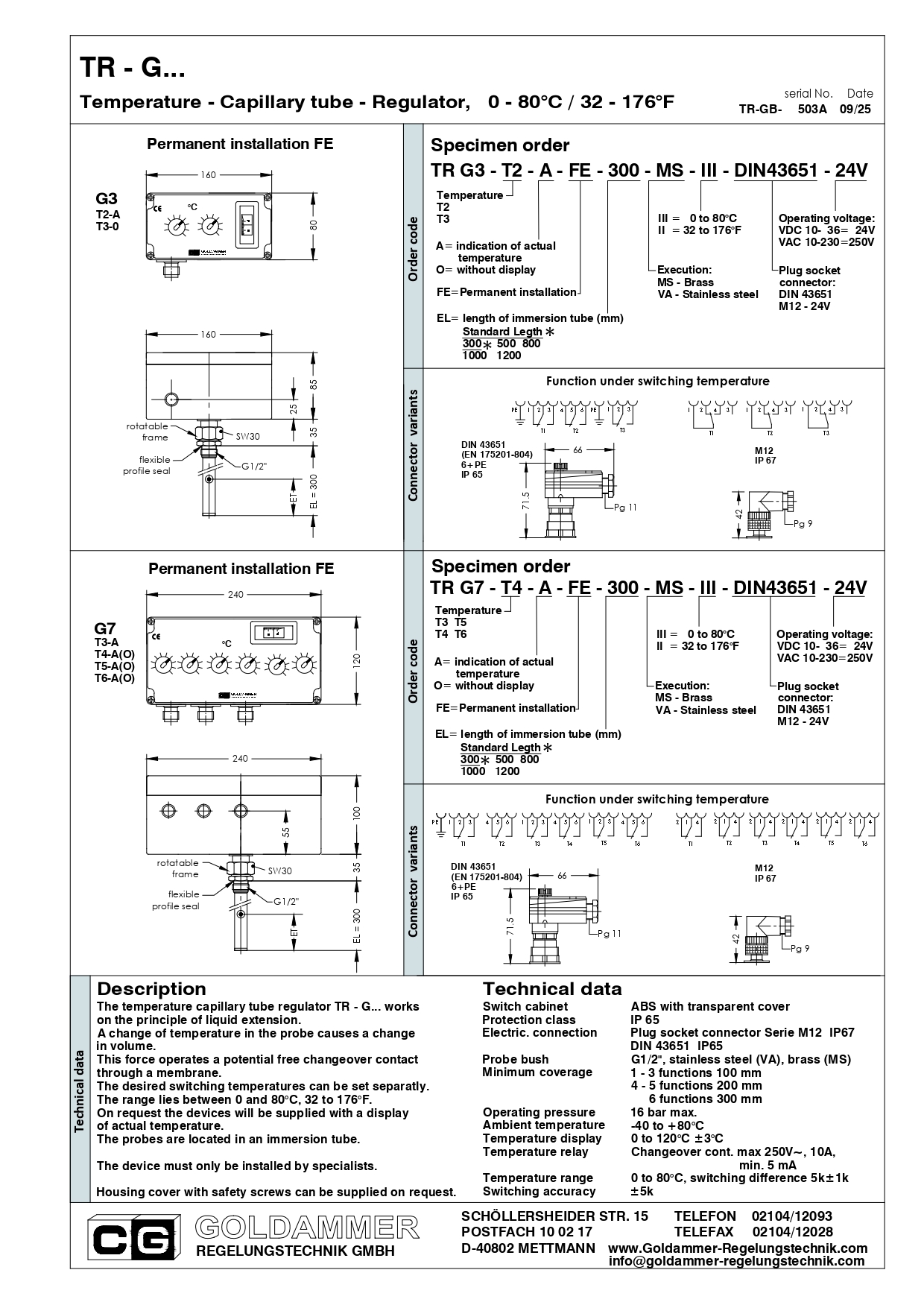

TR-GB-503A
TR – G…
Temperature – Capillary tube – Regulotor, 0-80°C / 32-176°F

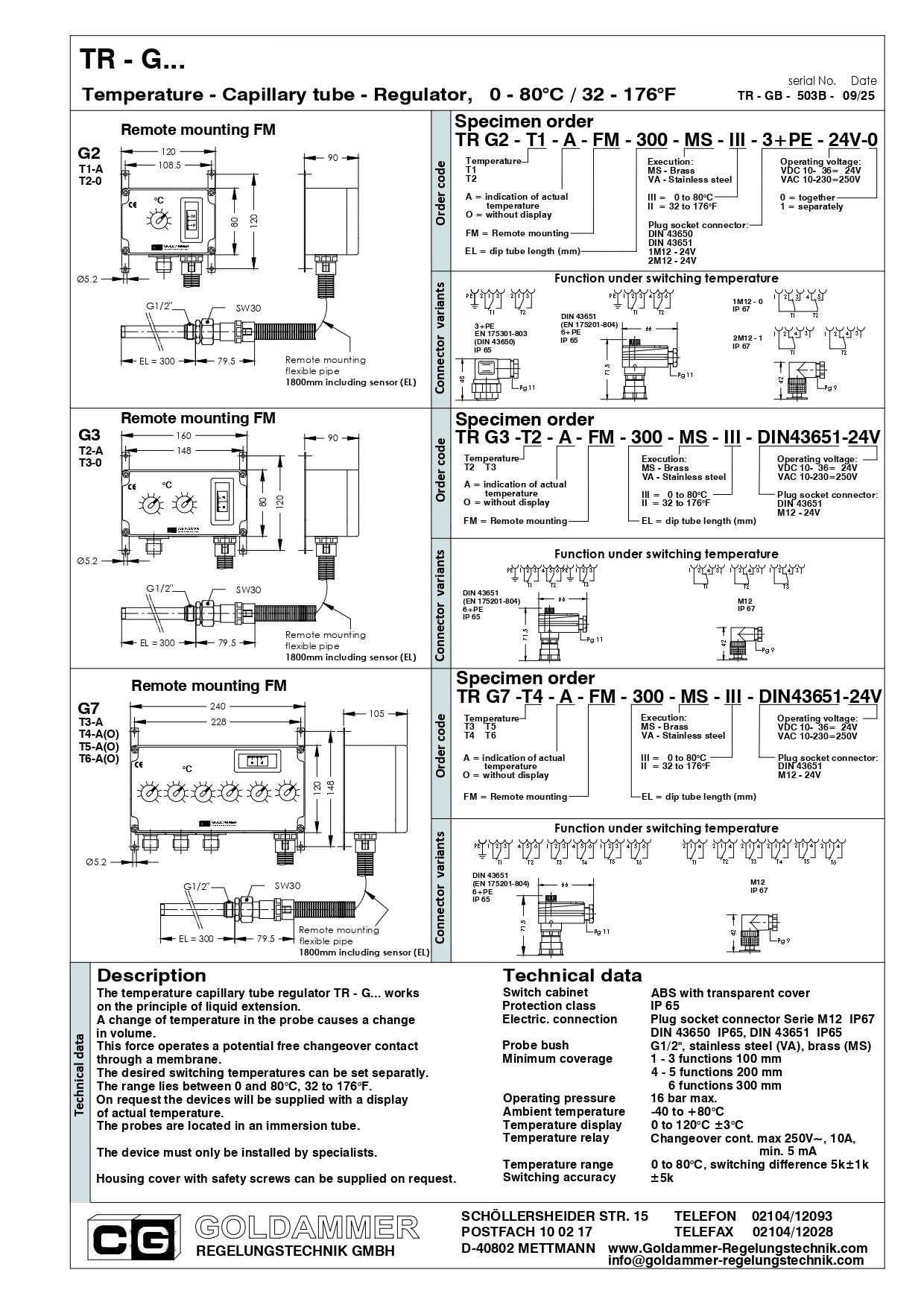

TR-GB-503B
TR – G…
Temperature – Capillary tube – Regulotor, 0-80°C / 32-176°F
seq. no. TR-GB-500a, TR 9 - G1/2", Temperature- Capillary tube - Regulator

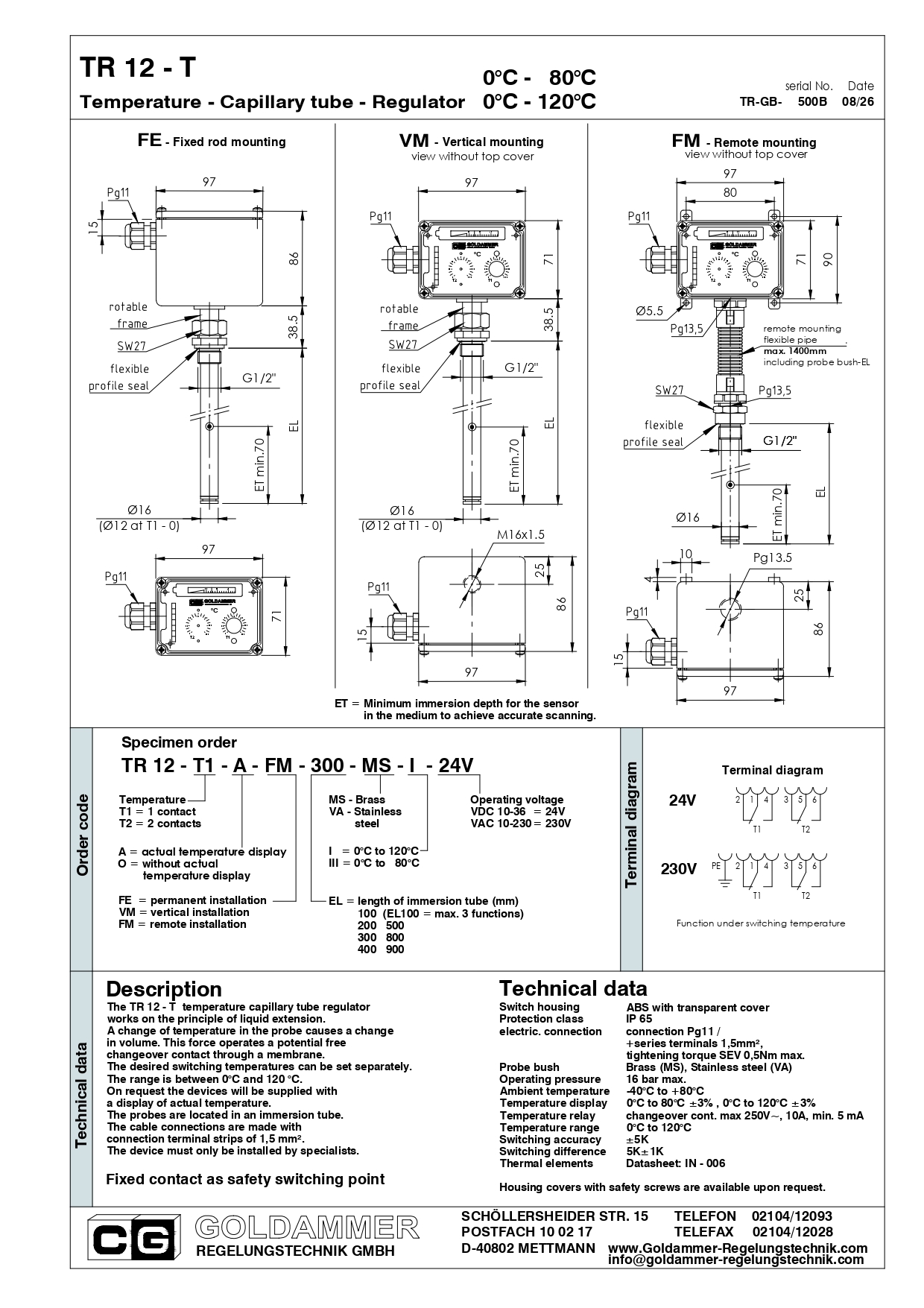

seq. no. TR-GB-500b, TR 12- K, Temperature- Capillary tube - Regulator

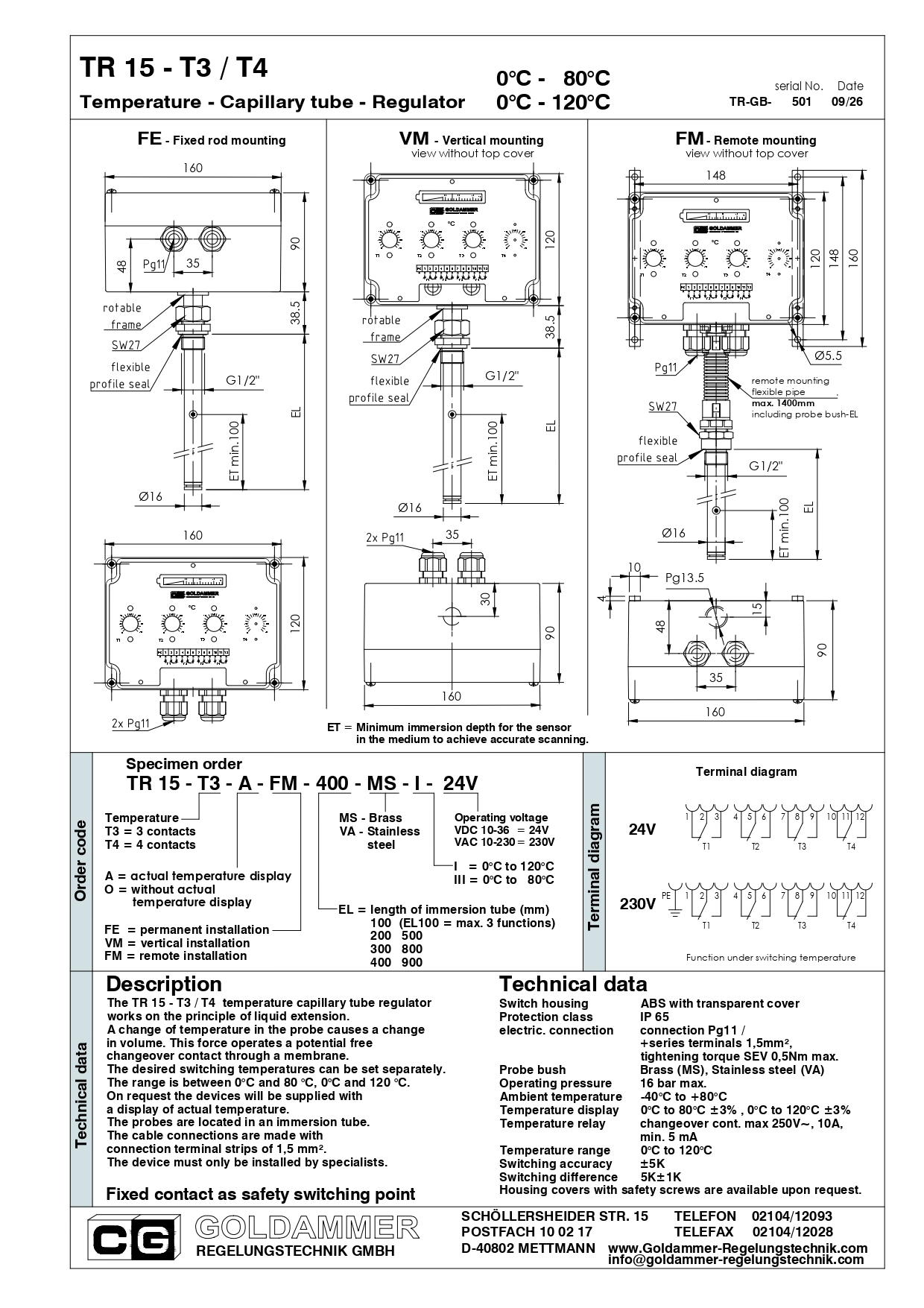

seq. no. TR-GB-501, TR 15 - K3 / K4, Temperature- Capillary tube - Regulator

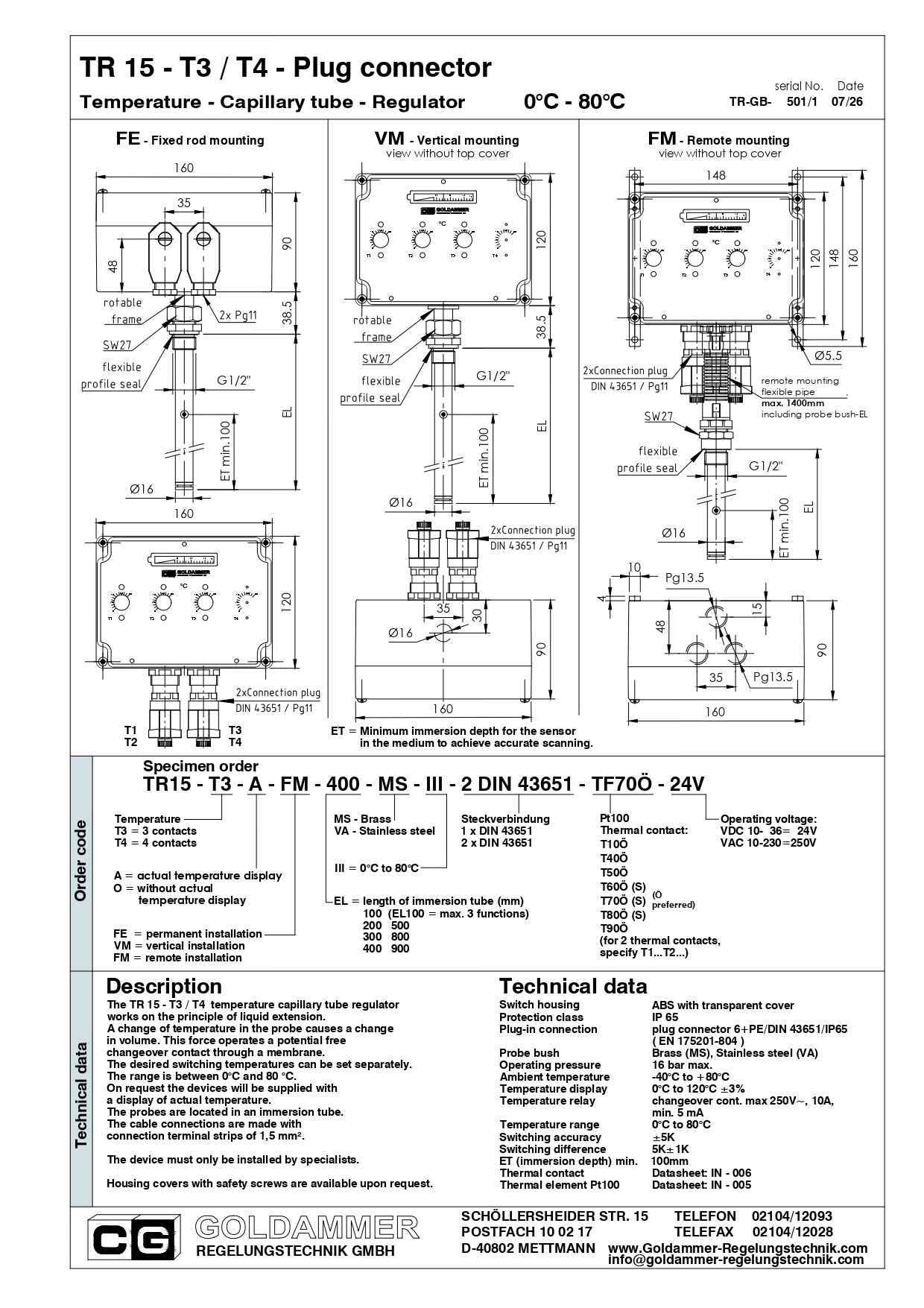

seq. no. TR-GB-501/1, TR 15 - K3 / K4 - DIN43651, Temperature- Capillary tube - Regulator
seq. no. TR-GB-501/2, TR 15 - K3 / K4 - M12/24V, Temperature- Capillary tube - Regulator
seq. no. TR-GB-502a, TR 15 - K5 / K6 - DIN43651, Temperature- Capillary tube - Regulator
seq. no. TR-GB-502b, TR 15 - K5 / K6 - M12/24V, Temperature- Capillary tube - Regulator
seq. no. TR-GB-505, TR 4 - G1/2", Temperature transducer 4-20mA
seq. no. TR-GB-505b, NR85 - MA - 150 °C max., Temperature transducer 4-20mA
seq. no. TR-GB-506, WTR - G1/2", Resistance thermometer Pt100
seq. no. TR-GB-507, TRW - G1" - G3/4" - G1/2" - M24 - M20, Temperatur monitor
